Metal Sheet Roof Mounting System

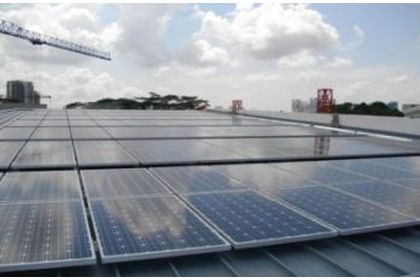

Cooperating cases:
Description:
Solar panel racking system is widely applied in installation and fixation of solar panel. The metal roof mounting system is suitable for roof, for flat roof, for slanting roof and for color stile tile roof.
Assembly drawing:
Tin roof mounting system
Technical parameter:
Type | Metal roof mounting system |
Installation site | Flat roof or slanting tin roof |
Tilt of bracket | 10~60° |
Proper module | Crystalline silicon/thin film |
Wind pressure | 62~74km / h |
Snow pressure | 0.5kN / m² |
Material | Al6063-T5 & SUS 304 |
Surface treatment | Silver anodizing 15μm |
Warranty | 10 years |
Working life | 25 years |
Features:
- 1. Simple installation
Many parts of metal roof mounting system have been installed at the factory, thus you just need to connect several standard modules to fix the bracket. - 2. The metal roof mounting system can work together with different modules. Briquetting height and tube rail length can be modulated according to modules.
- 3. Water-proof
The bracket is waterproof because of waterproof L foot and EPDM waterproof rubber mat. - 4. Beautiful shape and light weight
The metal roof mounting system adopts aluminum material, which ensures the stability and beautiful shapes. Additionally, it won’t cause threat to roof load. - 5. High stability and working time 25 years
Main parts of metal roof mounting system have been tested under extreme condition and it can endure pressure from wind and snow. It can be used in extreme weather. - 6. Strict quality control
The metal roof mounting system has obtained certificate of CE and TUV international certification.
Slanting tin roof mounting system
Assembly drawing:
Type | Metal roof mounting system |
Installation site | Flat roof or slanting tin roof |
Tilt of bracket | 10~60° |
Proper module | Crystalline silicon/thin film |
Wind pressure | 100km / h |
Snow pressure | 0.5kN / m² |
Material | Al6063-T5 & Q235 B |
Surface treatment | Silver anodizing 15μm and HDG (hot dip galvanizing) |
Warranty | 10 years |
Working life | 25 years |
Tin roof mounting system with ladder-shape fastener
Assembly drawing:
Type | Metal roof mounting system |
Installation site | Flat roof color steel tile roof |
Tilt of bracket | 10~60° |
Proper module | Crystalline silicon/thin film |
Wind pressure | 62~74km / h |
Snow pressure | 0.5kN / m² |
Material | Aluminum |
Surface treatment | anodizing |
Warranty | 10 years |
Working life | 25 years |
- LANTYTO® Metals Accessories mainly include hook, clamp for iron sheet roof etc. If you need more information, please download relevant pdf.
