Tilt Single Axis Solar Tracker
Description:

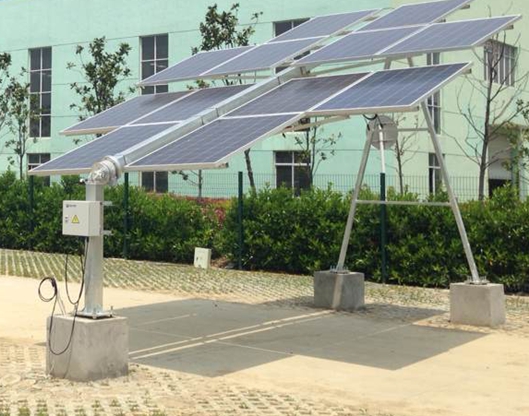

Tracker with axes of rotation between horizontal and vertical is considered tilt single axis PV solar tracker. Tilt single axis solar tracker is a device that orients a payload toward the sun. Tracker tilt angle is often limited to reduce the wind profile and decrease the elevated end height. Tilt single axis PV solar tracker is typically has the face of the module oriented parallel to the axis of rotation. As a module track, it sweeps a cylinder that is rotationally symmetric around the axis of rotation.
Advantages:
Tilt single axis PV solar tracker is designed for large-scale PV ground mounting system and is widely used in mid/low-latitude regions. The system will achieve automatic tracking by means of a set of drives and controllers. The system supports reliability, low failure rate and low maintenance cost because of unique linkage structure and maintenance-free rotary bearing. Compared with traditional fixed tilt ground mount, tilt single axis PV solar tracker achieves 30% higher annual power generation.
Features:
- 1. The tilt single axis PV solar tracker is featured by automatic tracking; self-reset, manual control, wind speed test and group control function etc.
- 2. Adaptability
The solar tracking is free from rainy days and weak light. - 3. The bracket will realize automatic location at night.
- 4. Wind-resistant design
The tilt single axis PV solar tracker adopts wind-resistant design, thus it can automatically rotate direction to minimum wind resistance area according to anemometer and anemoscope. - 5. Self-reset
The solar tracking can automatically operate by self-reset. - 6. High reliability
Excellent electromagnetic compatibility design can prevent crashes and ensure high reliability. - 7. Manual operation
Tracking angle can be adjusted by hand. - 8. Group control function
The tilt single axis PV solar tracker adopts RS485 interface to realize long-distance communication. - 9. High automation and precision
The solar tracking will figure our sun height angle by data from GPS satellite, which improves automation and precision. - 10. Environmental-friendliness
All the brackets adopt HDG (hot dip galvanizing), thus they have 25-year working life. Besides, they can be recycled and recycling rate reaches 70%. - 11. Low consumption
The tilt single axis PV solar tracker uses space grid structure, which ensures axis and center of gravity at the same place. Thus, it can reduce consumption and lengthen the life of decelerator. - 12. High power generation efficiency
Its productivity is 25%-30% higher than fixed solar tracking.
- LANTYTO® Metals Accessories mainly include hook, clamp for iron sheet roof etc. If you need more information, please download relevant pdf.
Technical Parameter:
| Type | Tilt single axis PV solar tracker |
| Dimension of battery modules | 20±5m2 |
| Tilt | 20° |
| Power generation | 2.88-3.36kW |
| Motor power | 10W |
| Power consumption of motor per day | ≤0.01kWh |
| Power supply of motor | AC110V/AC220V/DC24V |
| Tracking angle | ±60° |
| Wind velocity | 75Km/h |
| Gross weight | 350Kg |
| Tracking principle | According to GPS |
| Surface treatment | HDG (hot dip galvanizing) |
| Working life | ≥25 years |
| Warranty | 5 years for mechanical parts and five years for electrical part |
| Qualification | CE，CCC，UL，ISO9001 |
| Specification of modules | 12 pieces of 240-280W |
| Electric cabinet | IP66 (windproof and waterproof) |
