Screw Pole Mount System (Spiral Pile Mounting System)

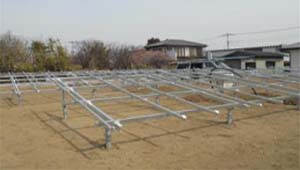

Cooperation cases of screw pole mount system:
Description:
Screw pole mount system is applied in fixation of solar panel. It is fit for outdoor as the spiral pile mounting system adopts special materials that can resist corrosion, like HDG (hot dip galvanizing) and anodized silver15μm, screw pole mount system is adaptable for different soils. Additionally, it is easy to install. After it is removed, the vegetation can soon recover to reduce harm to surroundings.
Assembly Drawing:
Technical parameter:
Type | Screw pole mount system |
Installation site | Outdoor |
Tilt of bracket | According to research report |
Applicable module | Crystalline silicon/thin film |
Wind pressure | 100km / h |
Snow pressure | 0.5kN / m² |
Material | Q235B & AL6063T5 |
Surface treatment | HDG (hot dip galvanizing) and anodized silver15μm |
Warranty | 10 years |
Working time | 25 years |
Classification of ground screw:
- 1. Fixed ground screw
Size: length:1.3m, diameter 76mm
Surface treatment: hot-galvanizing 60-80μm, weight: 7kg
- 2. Adjustable ground screw (The height can be freely adjusted according to need.)
size: length 1.2-1.6m, diameter 76mm
surface treatment: hot-galvanizing 60-80μm, weight: 9kg
- LANTYTO® Metals Accessories mainly include hook, clamp for iron sheet roof etc. If you need more information, please download relevant pdf.
Advantages:
- 1. Simple installation
There is no need to do welding or surface treatment, which saves time and cost. You just need to drill. Generally speaking, it just takes one day to install one screw pole mount system with 100-200 ground screws. - 2. Large-scale application scope The screw pole mount system is suitable for different soils, like soft soil, bed rock, swamp and slope with more than 30°..
- 3. Spiral pile mounting system can work together with different support structures. The ground screw can be made according to client’s requirements.
- 4. Adaptable for different environment and environmental-friendly
There is no need to do much preparation for installation and there is no harm to environment during installation. Besides, ground screw can protect PV equipment and can be recycled. - 5. Convenient transformation
Screw pole mount system can be transformed easily without damage to vegetations. Additionally, it is simple to reinstall.
